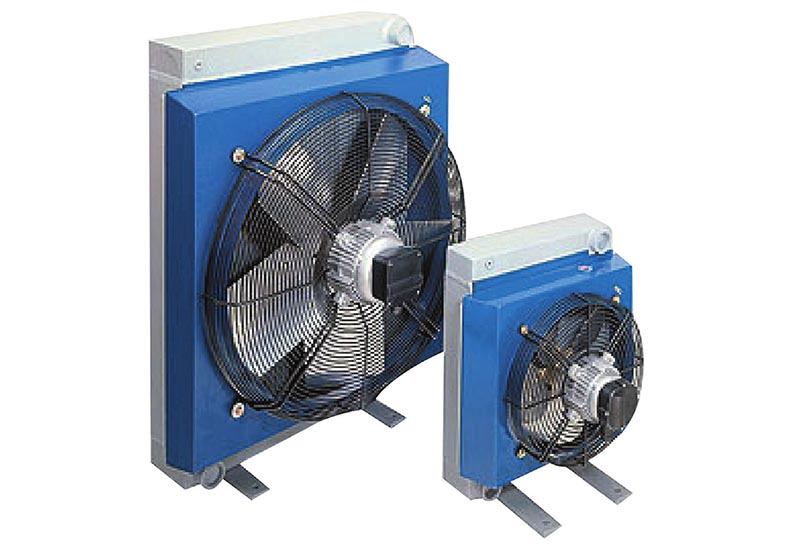

| Havalı Soğutucular | Δt = 20 ºC'de soğutma (kcal/saat) |
Δt = 30 ºC'de soğutma (kcal/saat) |
Maks.Yağ Debisi (lt/dk) |
Maks. Basınç (bar) |
Yağ Bağlantı Ölçüsü |
| 4010 TK 24V DC | 940 | 1400 | 40 | 24 | 1/2' BSP |
| 4010 TK 220V AC | 940 | 1400 | 40 | 24 | 1/2' BSP |
| 4015 TK 24V DC | 2330 | 4100 | 80 | 24 | 1' BSP |
| 4015 TK 220V AC | 2330 | 4100 | 80 | 24 | 1' BSP |
| 4020 TK 24V DC | 3020 | 4520 | 100 | 24 | 1' BSP |
| 4020 TK 220V AC | 3020 | 4520 | 100 | 24 | 1' BSP |
| 4024 TK 24V DC | 5670 | 8470 | 120 | 24 | 1' BSP |
| 4024 TK 220V AC | 5670 | 8470 | 120 | 24 | 1' BSP |
| 4024 TK 230-400 AC 3 FAZ | 5670 | 8470 | 120 | 24 | 1' BSP |
| 4030 TK 24V DC | 7880 | 12030 | 140 | 24 | 1' BSP |
| 4030 TK 220V AC | 7880 | 12030 | 140 | 24 | 1' BSP |
| 4030 TK 230-400 AC 3 FAZ | 7880 | 12030 | 140 | 24 | 1' BSP |
| 4040 TK 24V DC | 10050 | 15030 | 160 | 24 | 1 1/4' BSP |
| 4040 TK 220V AC | 10050 | 15030 | 160 | 24 | 1 1/4' BSP |
| 4040 TK 230-400 AC 3 FAZ | 10050 | 15030 | 160 | 24 | 1 1/4' BSP |
| 4050 TK 24V DC 4 FANLI | 13550 | 20050 | 180 | 24 | 1 1/4' BSP |
| 4050 TK 220V AC | 13550 | 20050 | 180 | 24 | 1 1/4' BSP |
| 4050 TK 230-400 AC 3 FAZ | 13550 | 20050 | 180 | 24 | 1 1/4' BSP |
| 4030 2TKS ÇİFT FANLI 24V DC | 15550 | 23500 | 260 | 24 | 1 1/4' BSP |
| 4030 2TKS ÇİFT FANLI 220V AC | 15550 | 23500 | 260 | 24 | 1 1/4' BSP |
| 4040 2TKS ÇİFT FANLI 24V DC | 19400 | 29400 | 320 | 24 | 1 1/2' BSP |
| 4040 2TKS ÇİFT FANLI 220V AC | 19400 | 29400 | 320 | 24 | 1 1/2' BSP |
| TK 6 (230/400 3 FAZ 0.55KW 1500 D/D) | 26100 | 35100 | 200 | 26 | 1 1/4' BSP |
| TK 8 (230/400 3 FAZ 2.2KW 1500 D/D) | 51100 | 72050 | 250 | 26 | 1 1/2' BSP |
| TK 10 (230/400 3 FAZ 5.5KW 1500 D/D) | 135100 | 180100 | 500 | SAE 3' | |
